Playwright MCP server guide

Overview

The official Playwright MCP server provides browser automation capabilities using Playwright. This server enables AI agents to interact with web pages through structured accessibility snapshots, bypassing the need for screenshots or visually-tuned models.

Key features include:

• Fast and lightweight: Uses Playwright's accessibility tree instead of pixel-based input
• LLM-friendly: Operates purely on structured data without requiring vision models
• Deterministic tool application: Avoids ambiguity common with screenshot-based approaches
• Multi-browser support: Works with Chrome, Firefox, Safari (WebKit), and Edge
• Tab management: Create, switch between, and manage multiple browser tabs
• Persistent sessions: Maintains login state and browser data between interactions

Metadata

Error: Failed to fetch metadata for MCP server "playwright".

Error details

# Error fetching data for playwright
# Failed to fetch MCP server data. See logs for details.
# Please check that the server exists in the registry and thv command is available

Usage

The Playwright MCP server supports numerous command-line arguments to customize its behavior. Common options include:

• Custom viewport: Set --viewport-size to specify browser dimensions (e.g., 1920,1080)
• Device emulation: Use --device to emulate mobile devices (e.g., "iPhone 15")
• Network isolation: Configure --allowed-origins and --blocked-origins to control which websites the browser can access
• Output directory: Specify --output-dir to save screenshots, PDFs, and other files to a custom location; mount a host directory for persistence (see examples below)

Refer to the Playwright MCP server documentation for the full list of configuration options and their descriptions.

Limitations

The containerized version of Playwright only supports the Chromium browser in headless mode.

UI

Select the playwright MCP server in the ToolHive registry. The server runs with default settings that work for most use cases.

To customize the server's behavior, add command-line arguments in the Command arguments section.

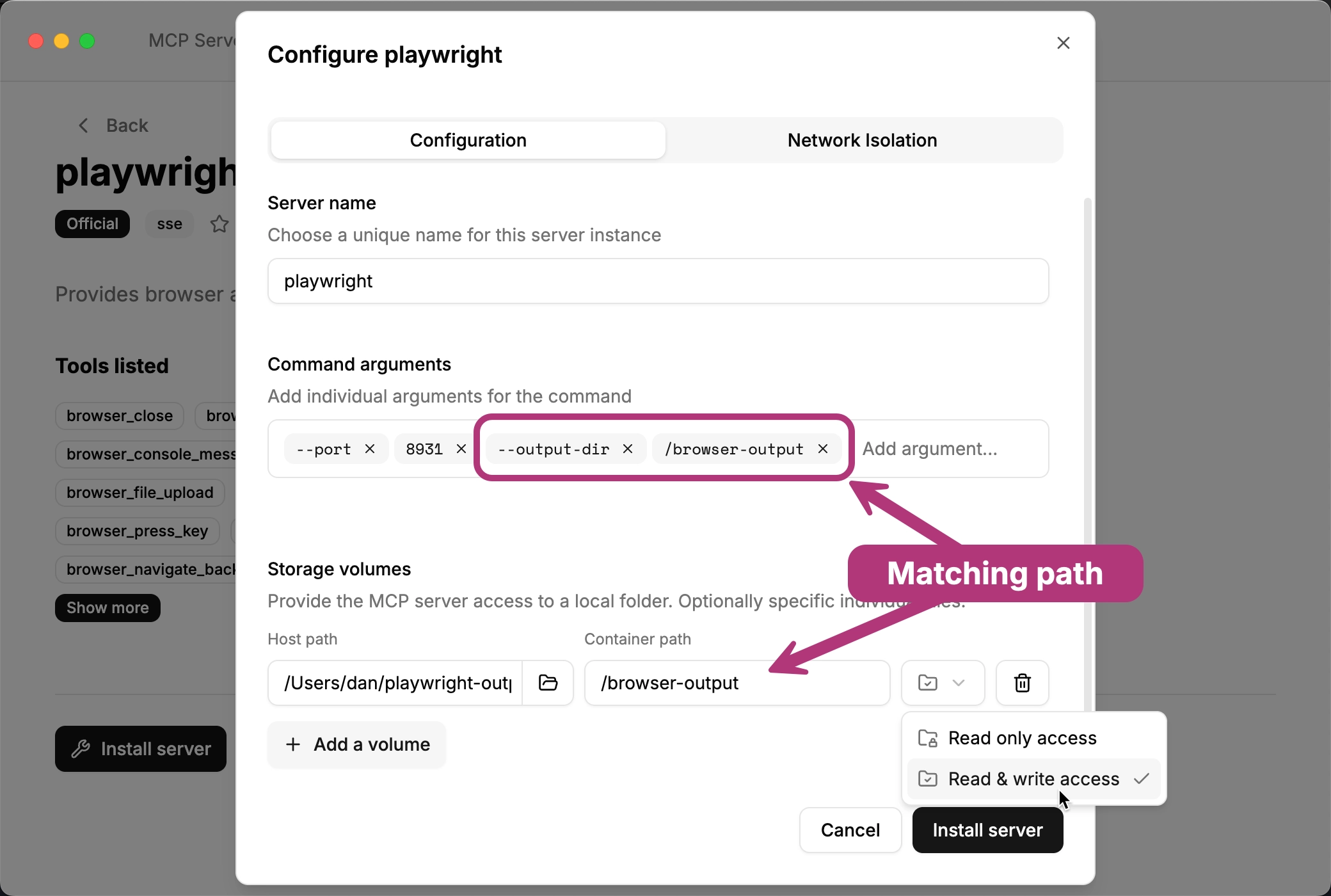

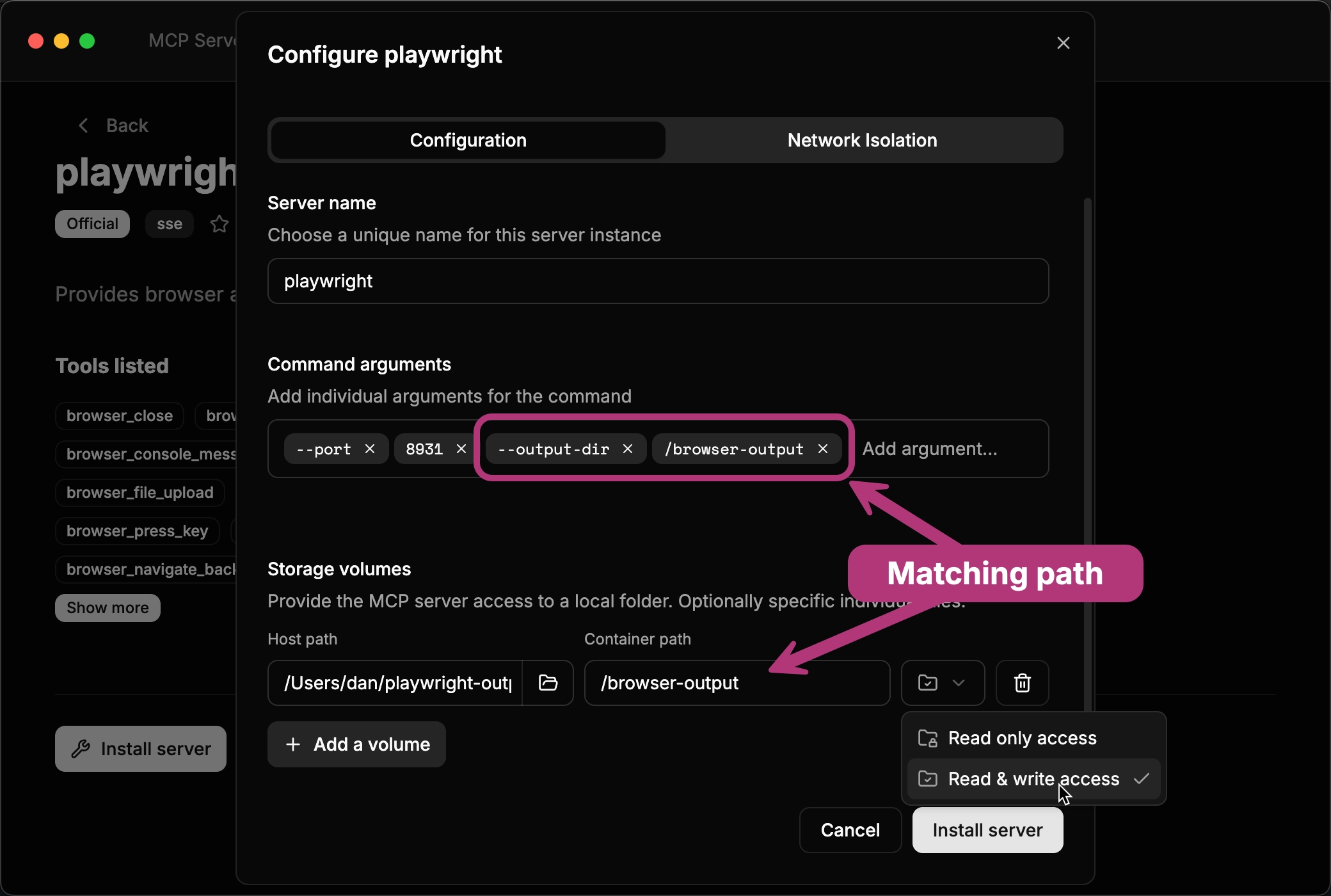

To save browser output files like screenshots and traces, mount a host directory in the Storage volumes section and add the --output-dir <container-path> command argument as shown in the screenshot below.

Important

Don't remove the --port 8931 argument, as the server requires it to function correctly in ToolHive.

CLI

Run with the default configuration using Chromium in headless mode:

thv run playwright

Emulate a mobile device for responsive testing:

thv run playwright -- --port 8931 --device "iPhone 15"

Restrict access to specific domains:

thv run playwright -- --port 8931 --allowed-origins "example.com;trusted-site.com"

Mount a host directory (e.g., ~/playwright-output) to save browser output files like screenshots and traces:

mkdir ~/playwright-output
thv run --volume ~/playwright-output:/browser-output playwright -- --port 8931 --output-dir /browser-output --save-trace --save-session

You can run multiple instances of the server with different configurations by giving each a unique name:

thv run --name playwright-desktop playwright -- --port 8931 --device "Desktop Chrome" --viewport-size 1920,1080
thv run --name playwright-iphone playwright -- --port 8931 --device "iPhone 15"

Important

Don't remove the --port 8931 argument, as the server requires it to function correctly in ToolHive.

Kubernetes

Create a basic Kubernetes manifest to deploy the Playwright MCP server:

playwright.yaml

apiVersion: toolhive.stacklok.dev/v1alpha1
kind: MCPServer
metadata:
  name: playwright
  namespace: toolhive-system
spec:
  image: mcr.microsoft.com/playwright/mcp:v0.0.36
  transport: streamable-http
  targetPort: 8931
  port: 8080
  args:
    - '--port'
    - '8931'
  permissionProfile:
    type: builtin
    name: network

Apply the manifest to your Kubernetes cluster:

kubectl apply -f playwright.yaml

For production deployments with network restrictions:

playwright-restricted.yaml

apiVersion: toolhive.stacklok.dev/v1alpha1
kind: MCPServer
metadata:
  name: playwright
  namespace: toolhive-system
spec:
  image: mcr.microsoft.com/playwright/mcp:v0.0.36
  transport: streamable-http
  targetPort: 8931
  port: 8080
  args:
    - '--port'
    - '8931'
    - '--allowed-origins'
    - 'example.com;trusted-domain.org'
  permissionProfile:
    type: builtin
    name: network

Mount a persistent volume to save browser output files like screenshots and traces:

playwright-with-volume.yaml

apiVersion: toolhive.stacklok.dev/v1alpha1
kind: MCPServer
metadata:
  name: playwright
  namespace: toolhive-system
spec:
  image: mcr.microsoft.com/playwright/mcp:v0.0.36
  transport: streamable-http
  targetPort: 8931
  port: 8080
  args:
    - '--port'
    - '8931'
    - '--output-dir'
    - '/browser-output'
    - '--save-trace'
    - '--save-session'
  permissionProfile:
    type: builtin
    name: network
  podTemplateSpec:
    spec:
      volumes:
        - name: playwright-output
          persistentVolumeClaim:
            claimName: playwright-output-claim
      containers:
        - name: mcp
          volumeMounts:
            - mountPath: /browser-output
              name: playwright-output
              readOnly: false

Sample prompts

Here are some sample prompts you can use to interact with the Playwright MCP server:

• "Navigate to https://example.com and take a screenshot of the homepage"
• "Go to the login page, fill in the username field with 'testuser' and password field with 'password123', then click the login button"
• "Open https://news.ycombinator.com and get the titles of the top 5 stories"
• "Navigate to a form on https://httpbin.org/forms/post, fill it out with sample data, and submit it"
• "Go to https://github.com/microsoft/playwright and check if there are any console errors on the page"
• "Take a full-page screenshot of https://example.com and save it as 'homepage.png'"
• "Navigate to an e-commerce site, search for 'laptop', and capture information about the first product"
• "Open multiple tabs, navigate to different websites in each, and then switch between them"

Recommended practices

• Use accessibility-first interactions: The server works best when you describe elements by their accessible names, labels, or text content rather than visual characteristics.
• Leverage browser profiles: For workflows requiring authentication, use persistent profiles or storage state files to maintain login sessions.
• Enable network restrictions: Use --allowed-origins and --blocked-origins to limit which domains the browser can access, especially in production environments.
• Monitor resource usage: Browser automation can be resource-intensive; consider using headless mode and limiting concurrent sessions.
• Handle dynamic content: Use the browser_wait_for tool when dealing with content that loads asynchronously.
• Organize output files: Specify a custom output directory to keep screenshots, PDFs, and traces organized.
• Test responsively: Use device emulation to test how web applications behave on different screen sizes and devices.
